The machine that you know, has taken a step forward
The 510 mm / 20 in walk-behind scrubber is the top selling model on the market, combining economy, productivity and size. MACH has revolutionized this popular model, applying innovative technology that breaks cleaning boundaries. The result is the elegant M510, a professional auto-scrubber that delivers outstanding results. Available with the MACH ECOsystem®.
MACH M510 WALK BEHIND SCRUBBER SAVE TIME AND MONEY REVOLUTIONARY

Experience powerful cleaning with the intelligent M510.

The M510 is a robust walk-behind auto-scrubber, which delivers outstanding results. Incredibly powerful, it ensures maximum water pick up and dirt removal, guaranteeing a professionally clean, dry floor that is ready for traffic.

Elegant in design and highly maneuverable, the M510 ensures effortless operation and light touch handling. It is highly productive with a 510 mm / 20 in cleaning path and top traction of 4 km/h / 2.5 mph it achieves a cleaning capacity of up to 2,200 m² / 23,700 ft² per hour. You can also rely on MACH manufacturing; the M510 is incredibly durable constructed in steel and electro-coated for the best anticorrosion protection and resistance to impact.

The M510 is available with MACH’s ECOsystem®, a patented technology that recycles water and detergent. Guaranteeing incredible solution, labor and cost savings whilst reducing the environmental impact of cleaning.

The M510 is available in four versions:

  • BASE M – delivers on cleaning performance at outstanding value for money
  • TRAC M – electronic free for absolute simplicity
  • TRAC TRONIC – full features for maximum control
  • ECO – top of the range and featuring MACH technology, fitted with the ECOSystem®



MACH M510 WALK BEHIND SCRUBBER WITH ROBUST STRUCTURE, SANDBLASTED AND ELECTRO COATED FOR ENHANCED RESISTANCE
ROBUST STRUCTURE

A heavy-duty frame that’s built to last, with innovative electro-coating that provides the best anti-corrosion protection.

MACH M510 WALK BEHIND SCRUBBER WITH VACUUM MOTOR PROTECTION PREVENTS DEBRIS ENTERING THE SYSTEM
VACUUM-MOTOR SAFEGUARD

The vacuum-motor is protected by a stainless steel filter, which prevents dust and debris entering the system, ensuring an even longer-life.

MACH M510 WALK BEHIND SCRUBBER WITH SIMPLE CONTROLS FOR INTUITIVE OPERATION
INTUITIVE OPERATION

The ergonomic multi-function display is tailored to the operator, designed with simple and easy to locate controls.

MACH M510 WALK BEHIND SCRUBBER WITH ONBOARD BATTERY CHARGER
HASSLE FREE BATTERIES

Full access to the batteries for simple maintenance, with an onboard battery charger for safe and rapid charging.

MACH M510 WALK BEHIND SCRUBBER WITH ALUMINIUM BRUSH HEAD
ALUMINIUM BRUSH HEAD

The impact resistant aluminum brush head is equipped with splashguard protection, eliminating side splash and enclosing solution inside the brush for a more precise clean. Easy maintenance with hands-free brush replacement.

MACH M510 WALK BEHIND SCRUBBER STEEL PARABOLIC SQUEEGE ENSURES COMPLETE WATER PICK UP
PARABOLIC SQUEEGEE

The impact resistant steel squeegee distributes down pressure along the length of the blades, delivering consistent cleaning results even around 180° turns. Designed with pre-scrub capability.

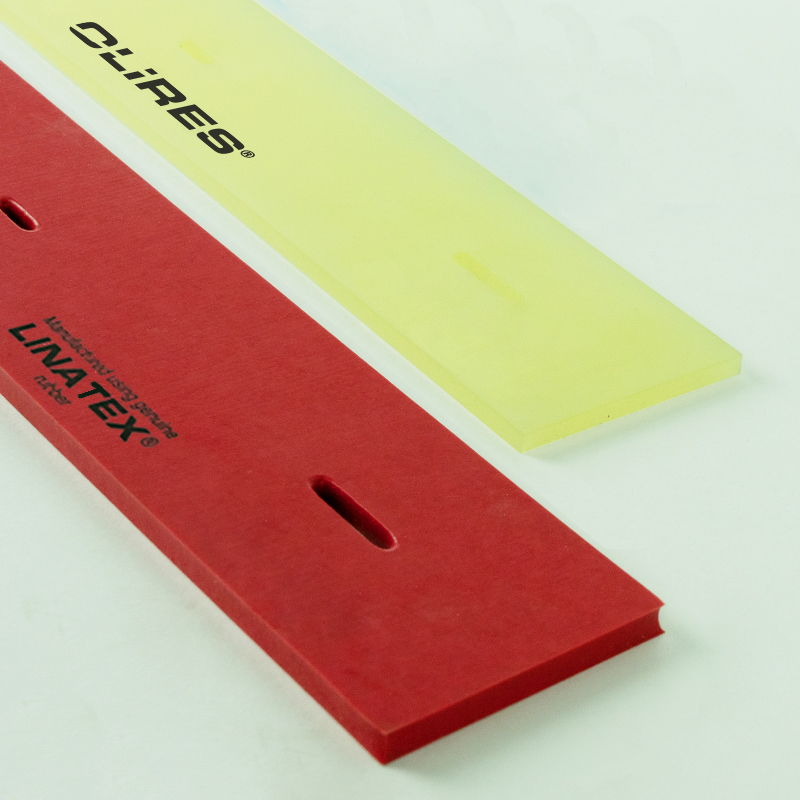

LONG-LIFE BLADES LINATEX® OR OLIRES®
LONG-LIFE BLADES

The Linatex® or OLIRES® ​blades are resistant to chemicals and every day wear and can be simply reversed to maximum life span. A quick release system makes tool-free replacement easy, minimizing downtime.

MACH 510 PRODUCTIVITY

AVAILABLE VERSIONS

  • M510 BASE M (mechanical)
  • M510 TRAC M (mechanical, with electronic traction)
  • M510 TRAC TRONIC (with a package of standard features, dedicated to the comfort of the operator)
  • M510 ECO (full-optional, with ECOsystem®)

FIELDS OF APPLICATION

Industrial sites, communities and vicinities, schools, offices, religious buildings, hospitals, public buildings, airports, ports, shopping malls, logistical depots, cleaning companies, and multi services.

SUITABLE CLEANING SURFACES

Ceramics, marble, cement/concrete, linoleum, non-slip surfaces, porcelain tiling, and many other dirty conditions.

TECHNICAL SPECIFICATIONSM510 BASE MM510 TRAC MM510 TRAC TRONICM510 ECO
Cleaning path (mm)510 mm / 20 in510 mm / 20 in510 mm / 20 in510 mm / 20 in
Cleaning capacity 2.200 m² / 23,700 ft² per hour2.200 m² / 23,700 ft² per hour2.200 m² / 23,700 ft² per hour2.200 m² / 23,700 ft² per hour
Solution tank capacity 40 L / 10.6 gal40 L / 10.6 gal40 L / 10.6 gal40 L / 10.6 gal
Recovery tank capacity56 L / 13.2 gal56 L / 13.2 gal56 L / 13.2 gal56 L / 13.2 gal
Drive mechanicelectronic assistedelectronic assistedelectronic assisted
Forward speed3 km/h / 1.9 mph4 km/h / 2.5 mph4 km/h / 2.5 mph4 km/h / 2.5 mph
Power24 V 24 V 24 V 24 V
Battery2 x 12V 2 x 12V 2 x 12V 2 x 12V
Battery chargeron-boardon-boardon-boardon-board
Weight (inclusive of battery & charger)198 kg / 437 lbs198 kg / 437 lbs198 kg / 437 lbs 198 kg / 437 lbs
Size (without squeegee)1.317 x 555 x 1.110 mm 1.317 x 555 x 1.110 mm 1.317 x 555 x 1.110 mm 1.317 x 555 x 1.110 mm
Squeegee width 830 mm / 32.7 in830 mm / 32.7 in830 mm / 32.7 in830 mm / 32.7 in
